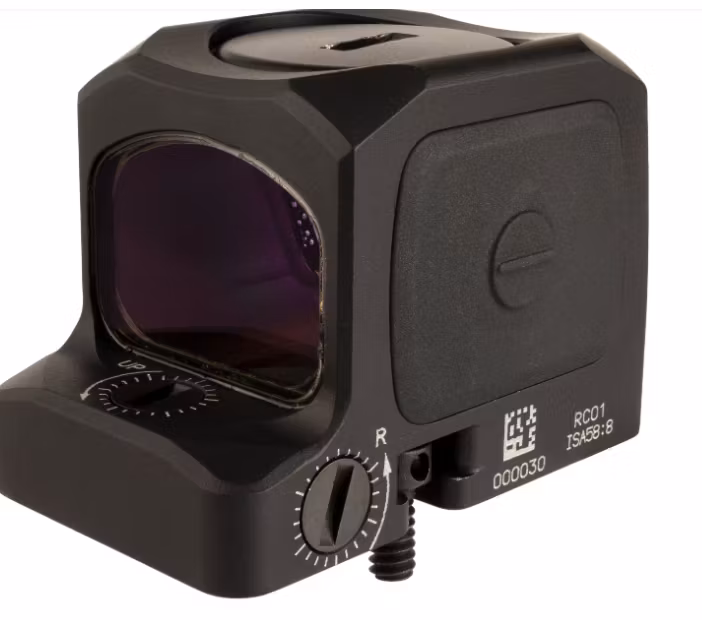

Trijicon - RCR® Reflex Sight

An extremely rugged and durable closed emitter optic which meets the demanding standards for military and law enforcement applications. The Trijicon RCR™ represents the next evolution of the Trijicon RMR® and is designed to be as durable as the legendary Trijicon ACOG®, while also improving precision and accuracy with any style or caliber of firearm in any type of environment. The RCR can withstand direct impacts and survive in the harshest environments, while still providing enhanced accuracy and an excellent field of view. The RCR does this while not requiring additional or new plates to be used as it works with the current RMR bolt pattern and direct mounts without the use of a dovetail.

Length x Width x Height
1.8 in x 1.2 in x 1 in
(45.72mm x 30.48mm x 25.4mm)

Weight
1.98 oz. (56.13g)

Magnification
1x

Reticle Pattern
3.25 MOA Dot

Day Reticle Color
Red

Night Reticle Color
Red

Illumination Source
LED

Illumination Settings
Push button adjustable with 10 brightness settings including 3 NV and 1 Super Bright

Power Source
CR2032

Battery Life
6 years on Setting 5

Adjustment
1 MOA per click

Adjustment Range
150 MOA Total Travel

Eye Relief
Infinite in.

Housing Material
7075-T6 aluminum

Finish
Matte Black

Submersion Depth
65 ft. (20m)

Operating Temperature
-40F to 140F (-40c to 60c)

1ea CR2032 Battery
1ea 1/16" Hex Allen Wrench
4ea #6-32 Short Capstan Screw
2ea #6-40 Capstan Screw (FN Platforms)
 1ea Manual
1ea RCR Capstan Hex Torque Guide
1ea Loctite 242/243 Capsule
