Note: All Apex10 reloading presses now ship from us with the GEN-2 Priming system!

APEX 10™ – 10-Station Manual Loading Press

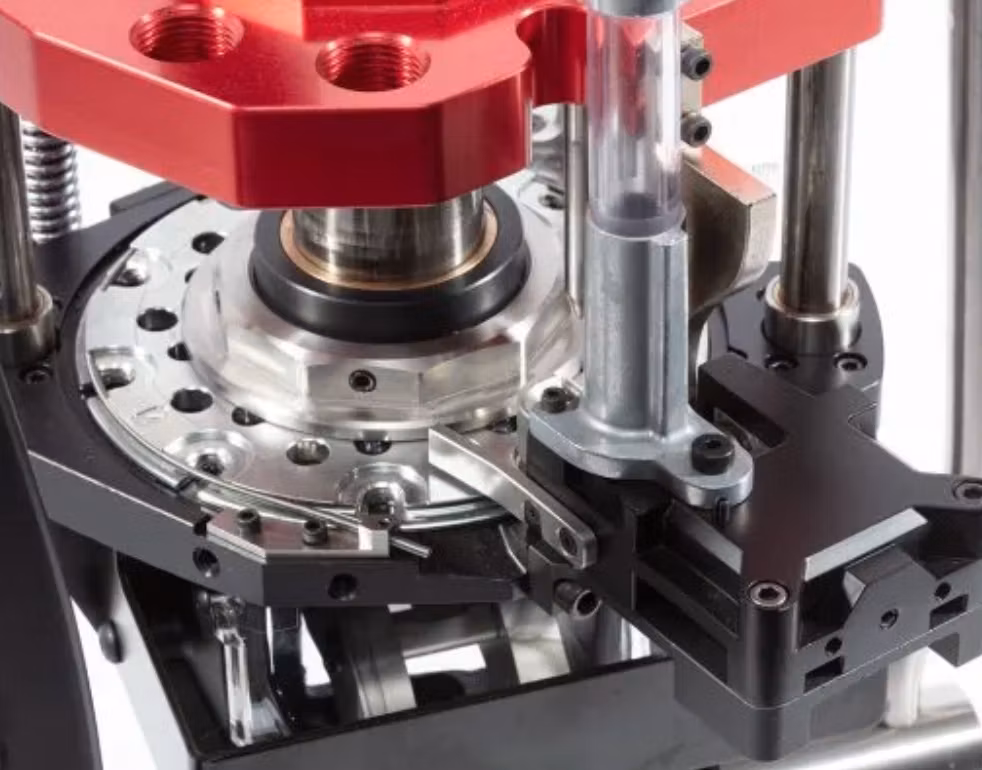

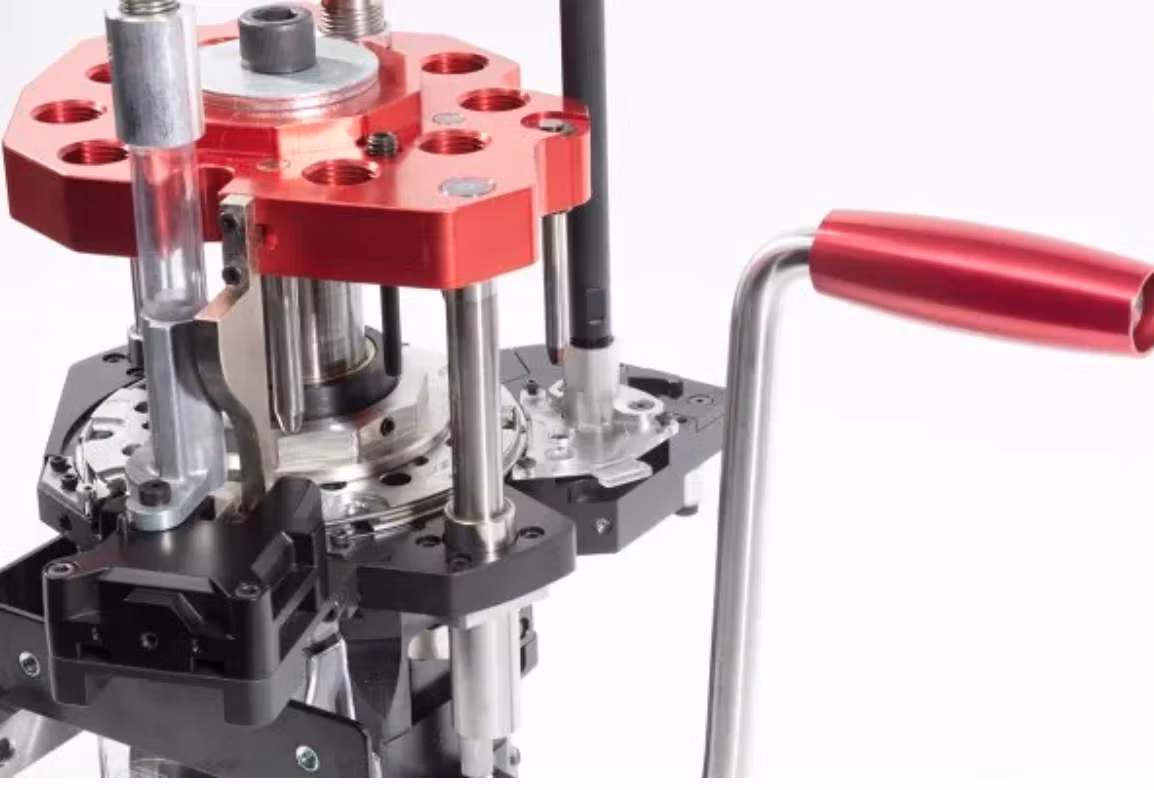

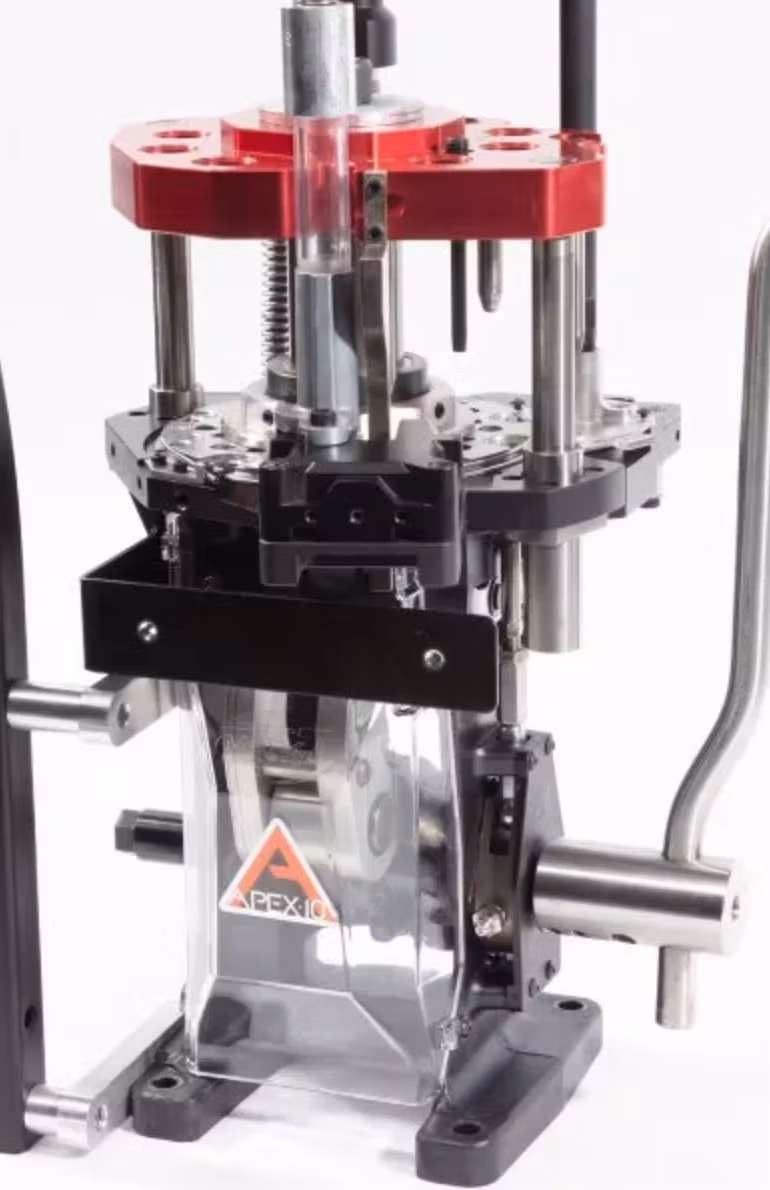

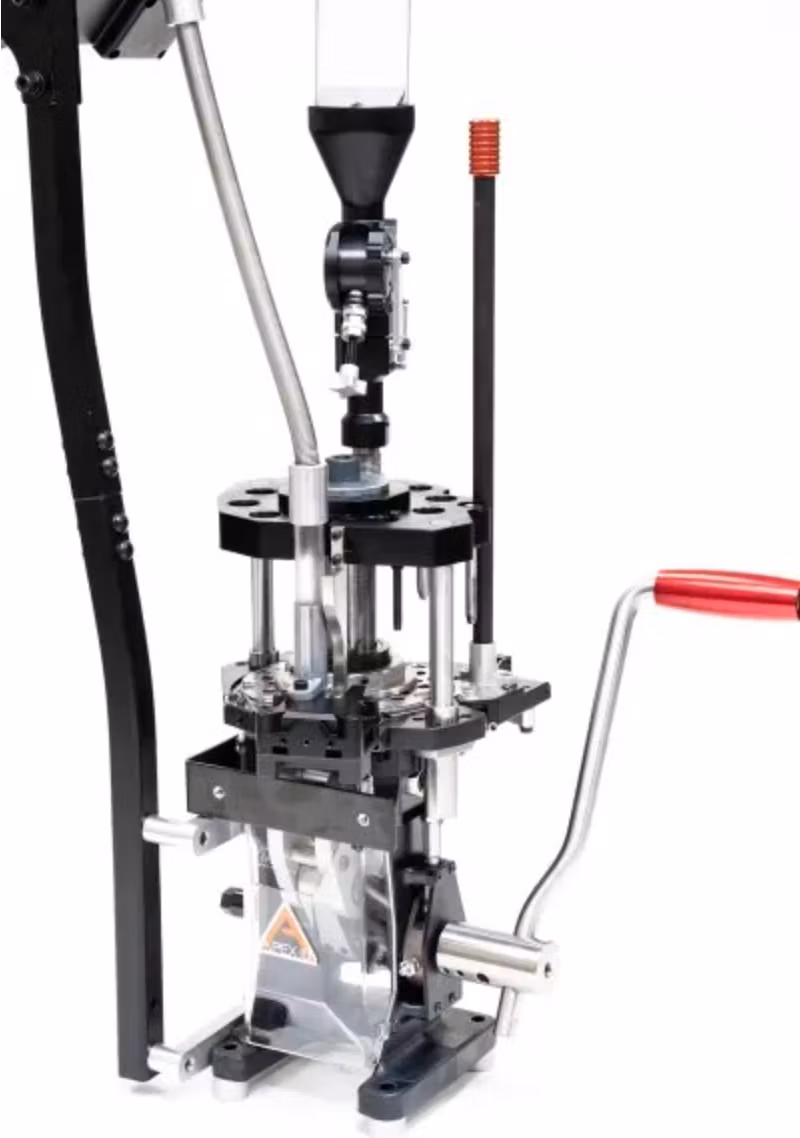

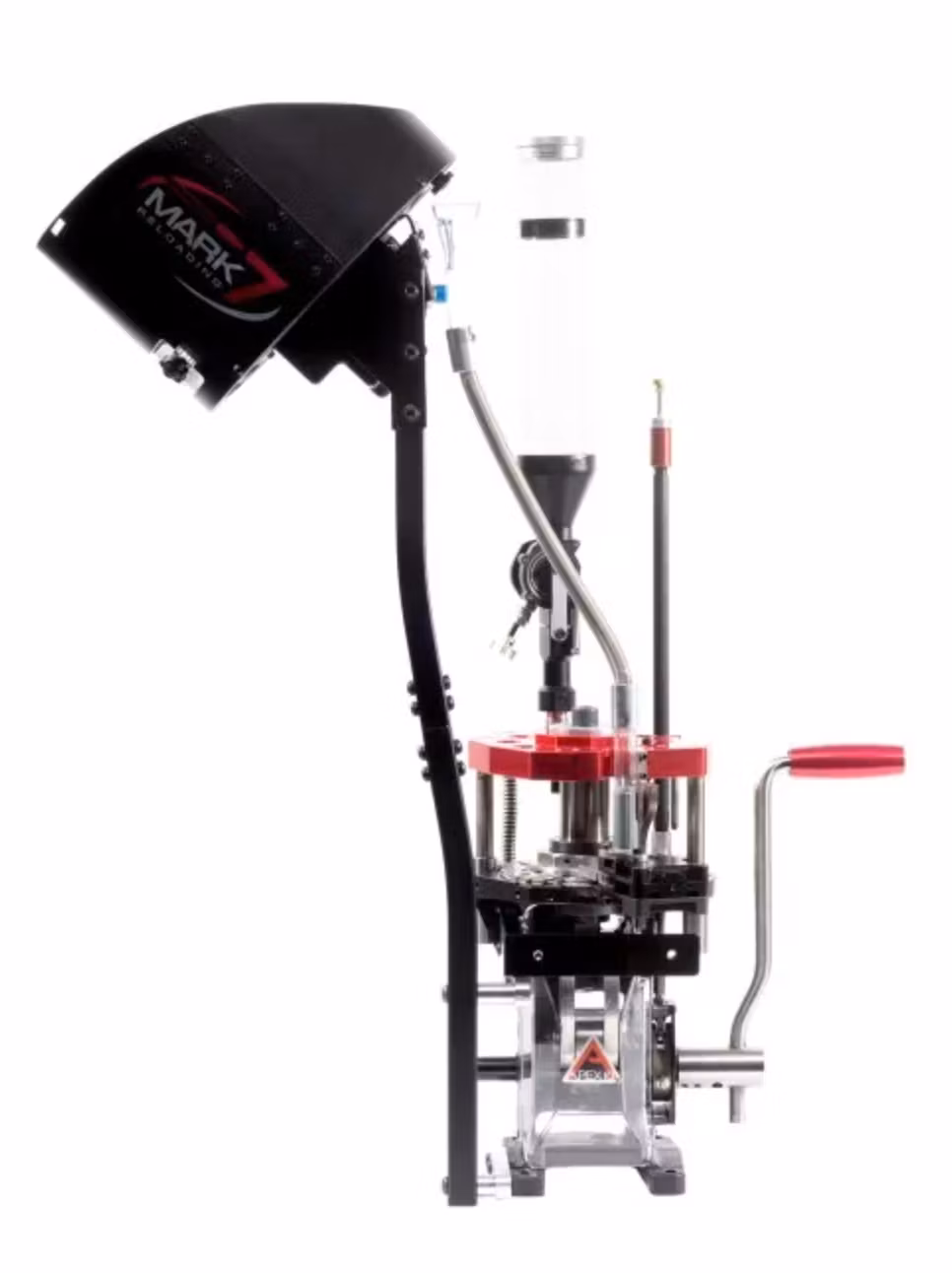

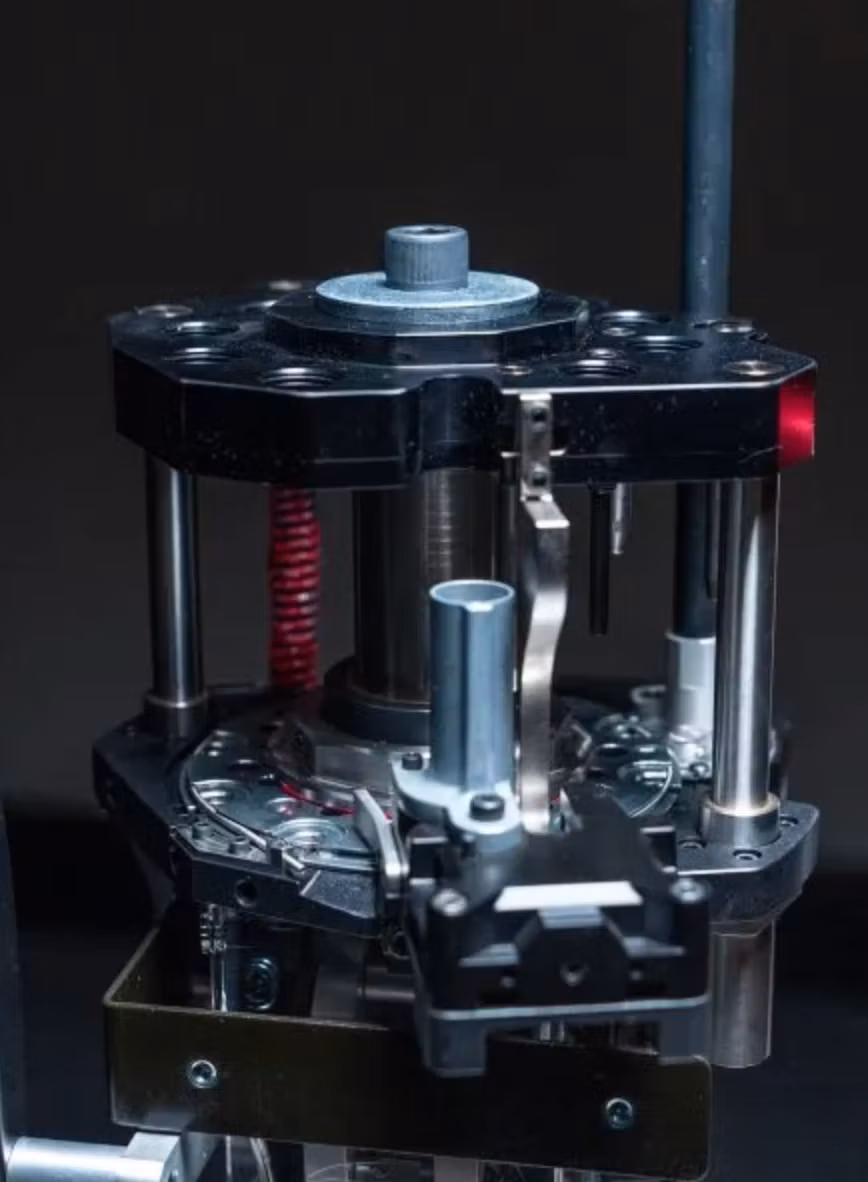

The Apex 10® is Mark 7’s top-tier, manually operated loading press. Built with a robust 10-station tool head, it supports both pistol and rifle calibers, ranging from .380 ACP to .308 Winchester. Standard features include on-press swaging (as with all Mark 7 presses), a rugged all-metal 11” high-speed case feeder, mechanical powder measure, stacked priming system, and a Lyman® Stainless Steel Pro Hold Down Die for use over the swage station.

Engineered with future expansion in mind, the Apex 10 is ready for automation and compatible with a wide array of upgrades — such as the Mark 7 Primer Xpress®, APEX 10 Autodrive, and the full suite of Mark 7 sensors and accessories.

Included with the Apex 10:

• 11” High-Speed Case Feeder with variable speed motor

• Mechanical Powder Measure with sealed bearings

• CNC-Machined 10-Station Tool Head

• Ergonomic Handle (configurable for right or left-hand operation)

• Lyman® Pro Hold Down Die

• Stacked Priming System with Shuttle Disk Delivery (small & large primer conversion included)

• Dual Guide Rod System for added tool head stability

Key Features:

• Compatible with Mark 7 Autodrive and sensor upgrades

• On-Press Swaging standard

• Smooth, ambidextrous operation

• Supports single-pass processing and loading

• Handles both new and fired brass

• Built from precision CNC-machined aluminum and steel

• Features bronze bushings for precise alignment

• Backed by full Mark 7 technical support

One Stroke – Total Control

The 10-station tool head offers unmatched flexibility. A common setup includes:

1. Case Feeding

2. Sizing & Decapping

3. Swaging or Case Trimming

4. Primer Seating with Hold Down

5. Case Flare/Neck Expansion

6. Powder Drop

7. Powder Check

8. Bullet Dropper

9. Bullet Seating

10. Crimping

This layout is just one option — the 10 stations allow endless configurations for both reloading and case processing.

Upgrade Options:

The Apex 10 can be upgraded at any time with:

• Mark 7 Autodrive System

• Primer Xpress® – Oscillating Electronic Primer System

• Digital Powder Measure (requires Autodrive)

• Digital Sensor Suite (requires Autodrive)

• Caliber Conversion Kits (everything needed to switch calibers)

• Rifle Trimmer Kit for case prep

Note: The Hold Down Die is included. Additional dies and a bullet feeder are sold separately.

Dimensions & Specs:

• Fully Assembled: 36” H x 15” W x 11” D

• Press Core: 18” H x 15” W x 11” D (45.7 x 38.1 x 27.9 cm)

• Weight: ~70 lbs (31.75 kg)
