Note: All Apex10 reloading presses now ship from us with the GEN-2 Priming system!

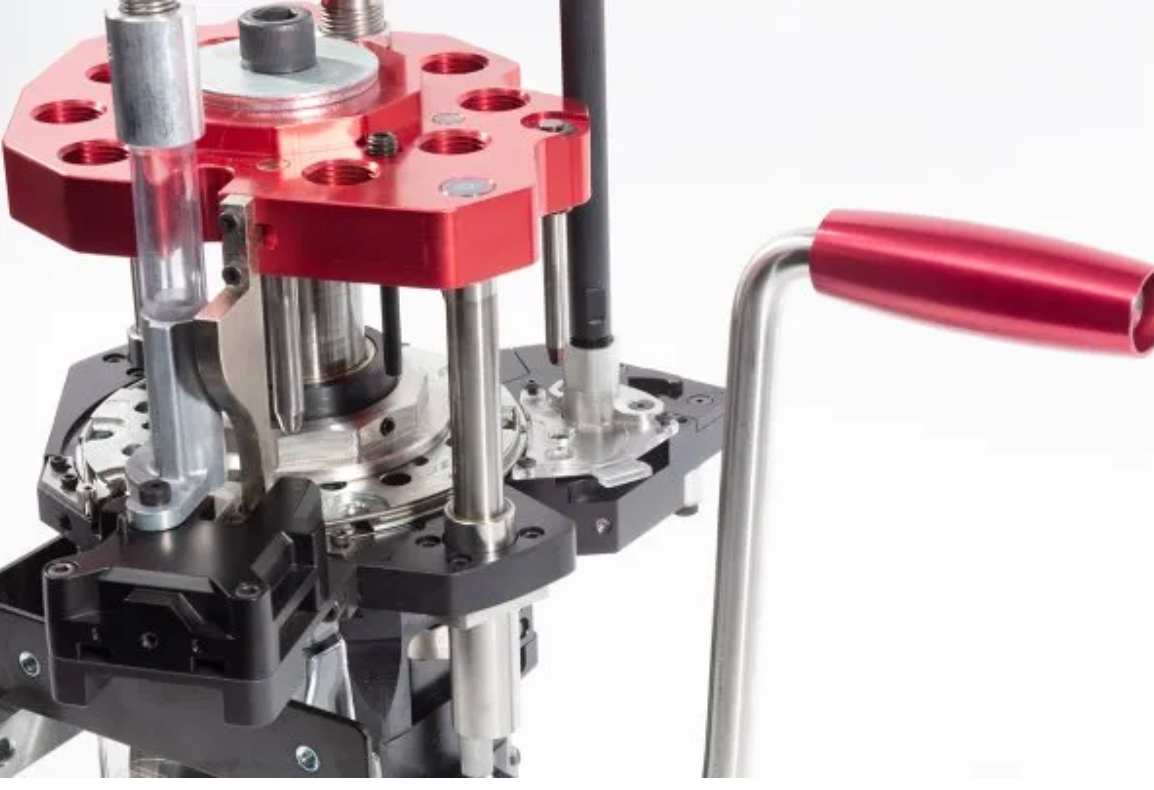

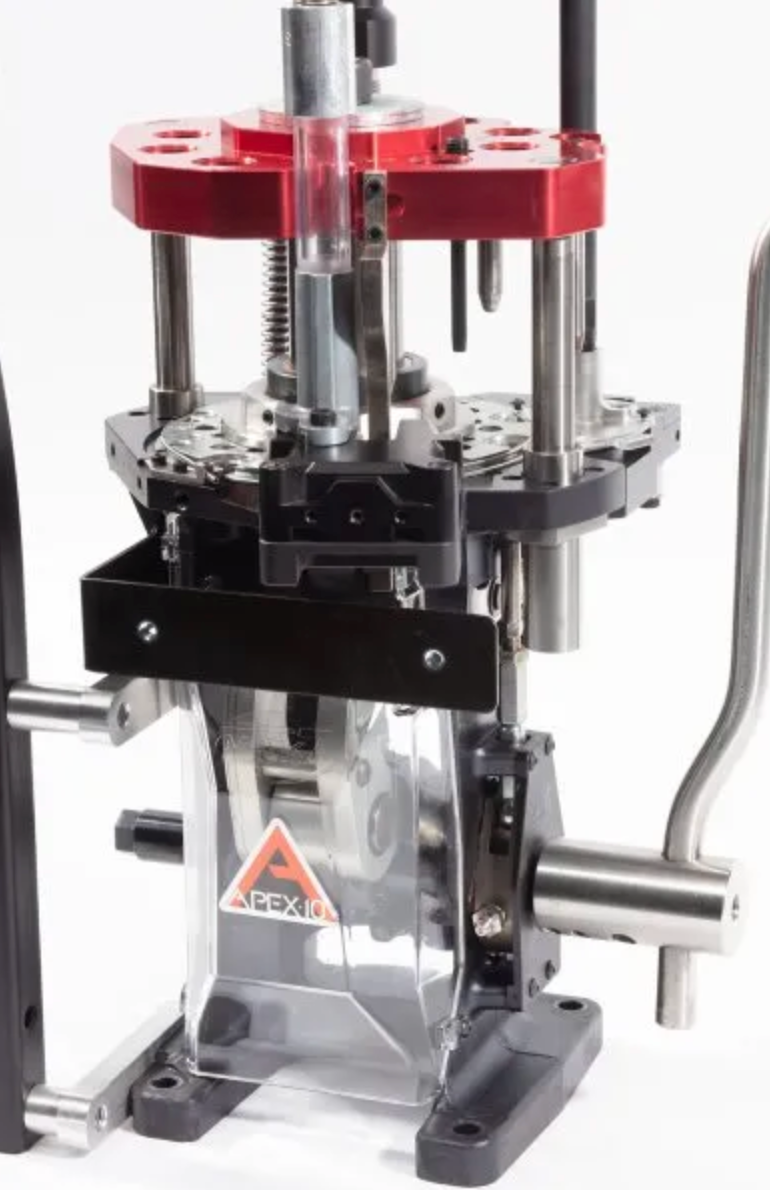

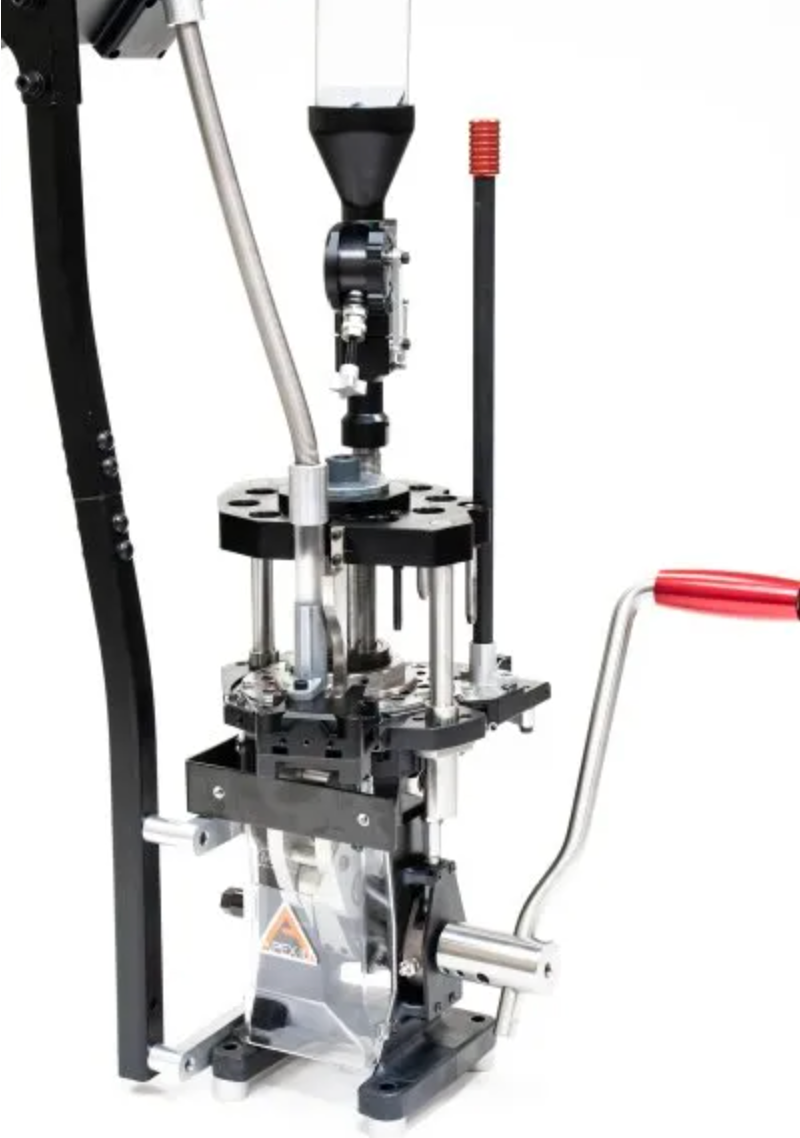

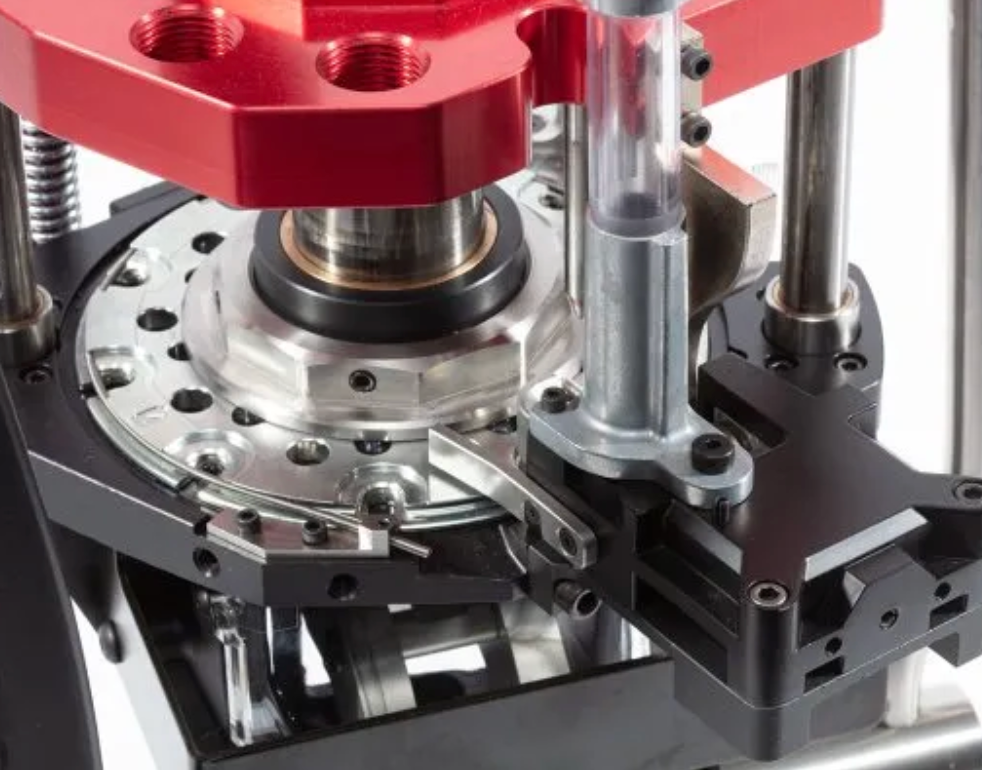

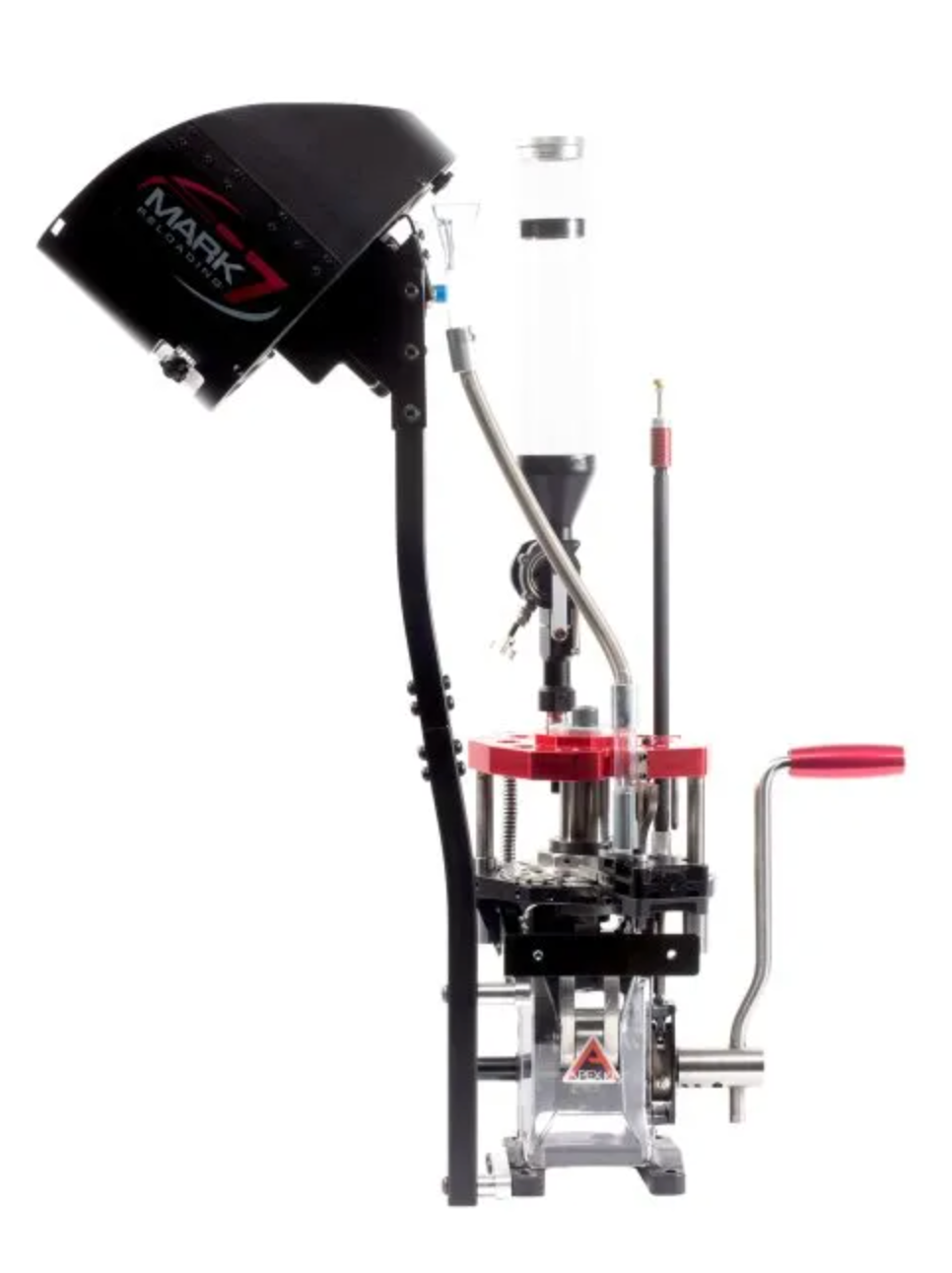

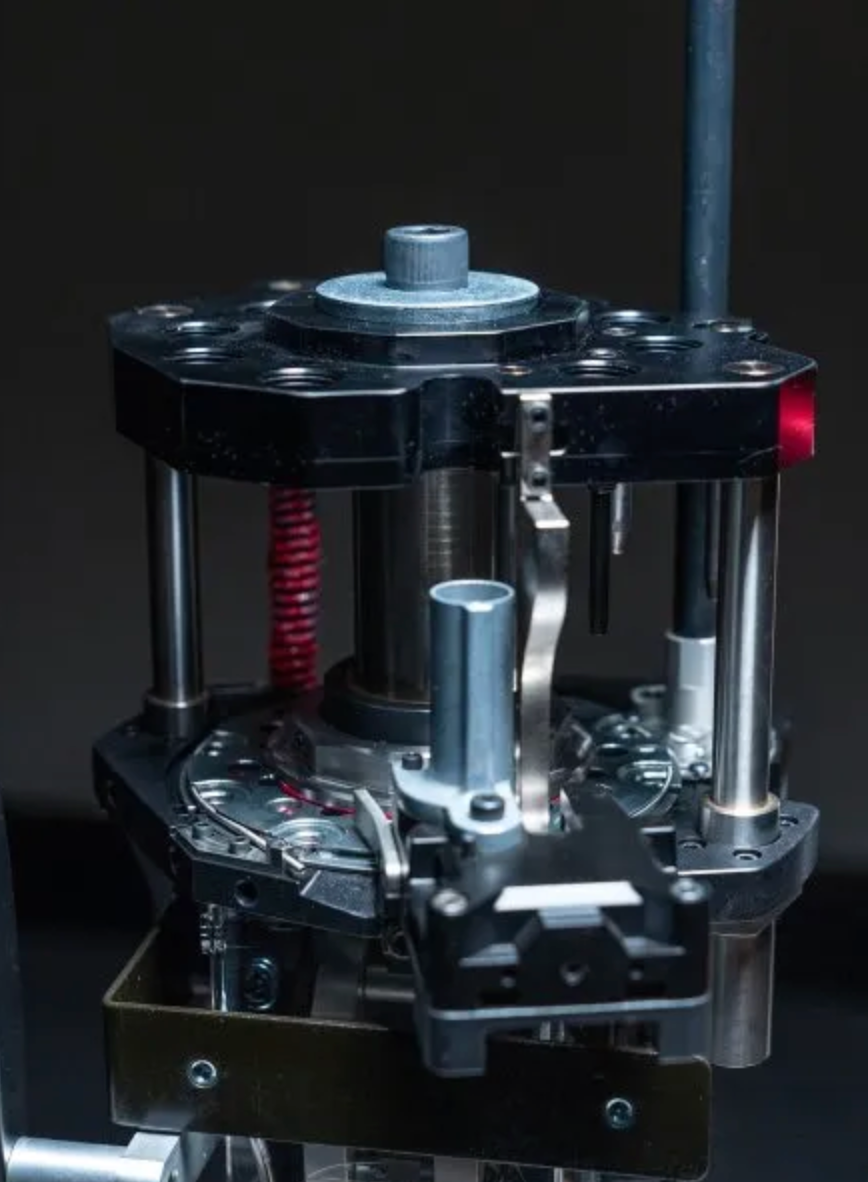

APEX 10™ – 10-Station Manual Loading Press
The Apex 10® is Mark 7’s top-tier, manually operated loading press. Built with a robust 10-station tool head, it supports both pistol and rifle calibers, ranging from .380 ACP to .308 Winchester. Standard features include on-press swaging (as with all Mark 7 presses), a rugged all-metal 11” high-speed case feeder, mechanical powder measure, stacked priming system, and a Lyman® Stainless Steel Pro Hold Down Die for use over the swage station.
Engineered with future expansion in mind, the Apex 10 is ready for automation and compatible with a wide array of upgrades — such as the Mark 7 Primer Xpress®, APEX 10 Autodrive, and the full suite of Mark 7 sensors and accessories.
Included with the Apex 10:
11” High-Speed Case Feeder with variable speed motor
Mechanical Powder Measure with sealed bearings
CNC-Machined 10-Station Tool Head
Ergonomic Handle (configurable for right or left-hand operation)
Lyman® Pro Hold Down Die
Stacked Priming System with Shuttle Disk Delivery (small & large primer conversion included)
Dual Guide Rod System for added tool head stability
Key Features:
Compatible with Mark 7 Autodrive and sensor upgrades
On-Press Swaging standard
Smooth, ambidextrous operation
Supports single-pass processing and loading
Handles both new and fired brass
Built from precision CNC-machined aluminum and steel
Features bronze bushings for precise alignment
Backed by full Mark 7 technical support
One Stroke – Total Control
The 10-station tool head offers unmatched flexibility. A common setup includes:
Case Feeding
Sizing & Decapping
Swaging or Case Trimming
Primer Seating with Hold Down
Case Flare/Neck Expansion
Powder Drop
Powder Check
Bullet Dropper
Bullet Seating
Crimping
This layout is just one option — the 10 stations allow endless configurations for both reloading and case processing.
Upgrade Options:
The Apex 10 can be upgraded at any time with:
Mark 7 Autodrive System
Primer Xpress® – Oscillating Electronic Primer System
Digital Powder Measure (requires Autodrive)
Digital Sensor Suite (requires Autodrive)
Caliber Conversion Kits (everything needed to switch calibers)
Rifle Trimmer Kit for case prep
Note: The Hold Down Die is included. Additional dies and a bullet feeder are sold separately.
Dimensions & Specs:
Fully Assembled: 36” H x 15” W x 11” D
Press Core: 18” H x 15” W x 11” D (45.7 x 38.1 x 27.9 cm)
Weight: ~70 lbs (31.75 kg)
