Technical Specifications

Night Vision: Compatible

Dimensions: 3.8" x 2.1" x 2.5" (96.5 x 53.3 x 63.5 mm)

Weight: 9.0 oz (255 g)

Water Resistant: 33ft. (10 m) depth

Mount: 1" Weaver or MIL-STD-1913 rail

Windage & Elevation Adjustment: 0.5 MOA per click

Brightness:

- 20 daylight settings

- 10 additional settings for Gen I through III+ night vision devices

Power Source: 1 x CR123 battery

Battery Life: 1,000 continuous hours at nominal setting 12 at room temperature

Operating Temperature: -40°F to 140°F (-40°C to 60°C)

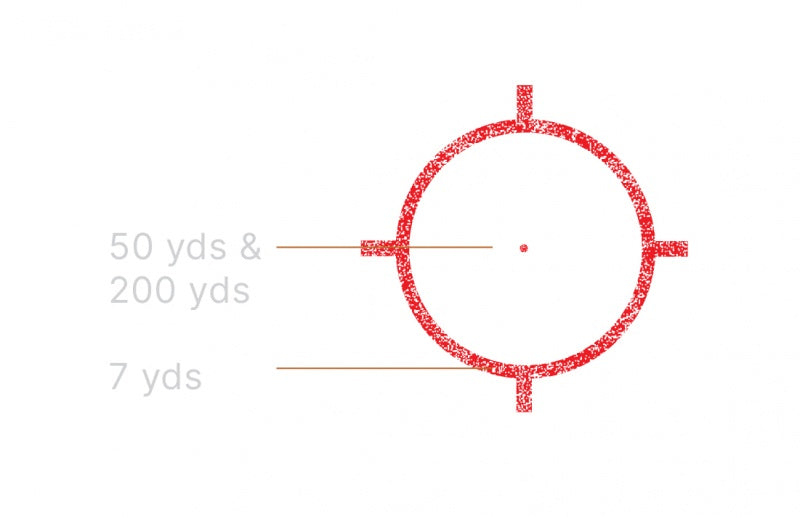

EOTECH One Dot Reticle

Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the opera- tor will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.

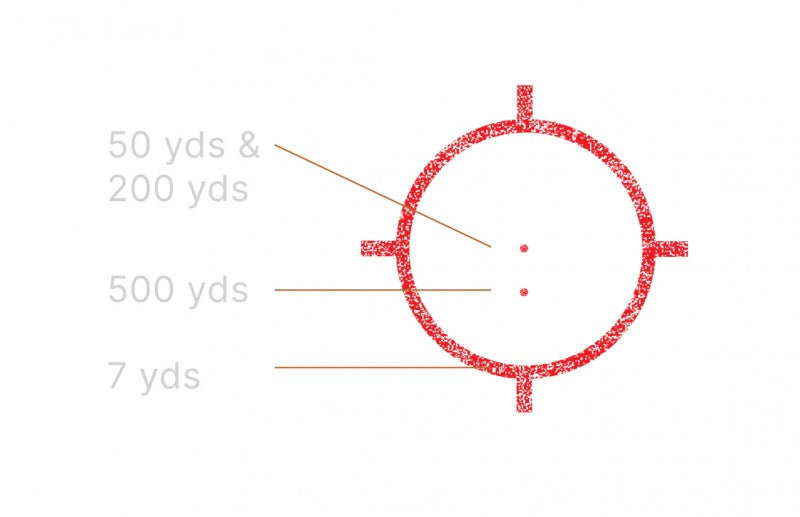

EOTECH Two Dot Reticle

Our two-dot reticle pattern can be easily distin- guished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For or- dering this reticle, the model codes will end in -2.
